Description

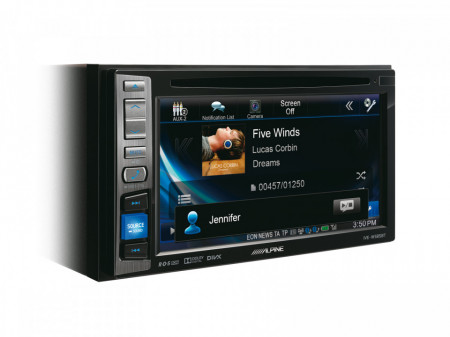

ALPINE IVE-W585BT 2DIN DE 6.2″ CU DVD/USB/BLUETOOTH

SISTEM DVD MULTIMEDIA 2-DIN CU ECRAN DE 6,1″

• Aveti o mare varietate de caracteristici, reglari avansate, inclusiv capacitatea de a utiliza aplicația TuneIt cu link direct catre Facebook.
• Calitatea excelenta a sunetului completeaza compatibilitatea sa larga, are inclusiv Bluetooth incorporat cu funcția Voice Dial și optional DVB-T /DAB/DAB+.
• Puteți personaliza aparatul cu orice imagine de fundal (Background) pe care o alegeți. Pur și simplu salvați imaginea (PNG/JPEG) pe un stick USB și o transferați pe unitate. Puteti alege culorile ecranului din 8 Culori: Albastru (Setare inițială), albastru deschis, turcoaz, verde, roșu, portocaliu, galben închis și alb.
• În cazul în care masina este echipata cu motor start-stop, unitatea multimedia va functiona si atunci când motorul se oprește la o intersecție.
• Sunet de inalta calitate cu BASS ENGINE SQ plus o mulțime de funcții de tuning personalizate.
• Descărcați aplicatia Alpine TuneIt App, apoi conectați iPhone-ul prin USB sau smartphone-ul Android prin Bluetooth. Puteti utiliza telefonul ca o interfață la îndemână pentru a realiza exact sunetul pe care il doriți în mașină. Daca sunteti pe Facebook, aplicația vă va notifica deasemenea cand primiti mesaje atat pe telefon cat și pe unitatea multimedia.
• IVE-W585BT asigură o conexiune USB de mare viteză pentru a vă permite să va bucurati de funcțiile de pe iPod sau iPhone. Impreuna cu calitatea superioară a sunetului și functionarea ușoară, veți obține căutare rapida dupa muzica, melodie, artist, album și alte opțiuni.
• Alpine oferă mai multe moduri de a actualiza cu ușurință sistemul dvs. IVE-W585BT are pregatire pentru camera de mers inapoi si pentru interfata de comenzi volan. Puteti conecta un tuner DVB-T pentru vizionarea TV cu calitate digitalăși puteti face diferite upgrade-uri prin USB.

Caracteristici tehnice:

Tuner

• Memory Presets: Preset Stations (FM:18 / MW:6 / LW:6)
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

RDS

• RDS Functions: AF, TA, TP, PTY, NEWS, RADIO TEXT

BLUETOOTH®

• Voice Dial Function
• Built-in BLUETOOTH® Module: BLUETOOTH Module Built-In
• Hands Free Calling: HFP (Hands-Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.4 Compatible
• Advanced BLUETOOTH® Technology
• Connection: SSP (Simple Secure Pairing) Supported
• Individual Profile Connection: Hands Free Phone and Music Streaming
• Phone Book Synchronization
• Speed Dial: 4 Memory presets
• Multiple Phone Number Registration: 3 Phone Numbers can be stored for one name
• Device Name Display
• Auto Answer
• Call History Display: Dialled Call / Received Call / Missed Call
• Redial Function
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• DTMF (Touch-Tone) Function
• Signal Strength Indicator
• Battery Level Indicator
• Menu Language Selection: 24 Languages
• Firmware Updatable
• Microphone: Microphone Included

Made for iPod® / iPhone®

• Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd Gen.,iPod classic 160GB/120GB/80GB, iPhone5S, iPhone5C, iPhone5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
• Connection: KCU-461iV Required (Except iPod touch 5th, iPod nano 7th, iPhone 5S,5C,5 ) Sold separately
• Music & Video Playback Compatible
• Available Selections: Playlist/Artist/Album/Song/Podcast/Genre/Composer/Audiobook
• Alphabet Search
• Artwork Display
• Direct Up/Down: Playlist/Artist/Album/Genre/Composer
• M.I.X. (Shuffle) Play: Song, Albums, All
• Repeat
• Battery Charging

TuneIt

• Cool GUI Sound Setting Function
• Sound Setting Data Upload to TuneIt Cloud Server (Data Sharing)
• Facebook Notification
• Compatible for iPhone and Android Smartphones: Available on Apple App Store and Google Play Store

Disc Player

• Disc Type: DVD/CD Player
• Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/RW
• Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX
• M.I.X. Random Play
• Repeat
• DVD Direct Menu Control
• CD Text Display
• CD Text Name Search
• DAC: 24 Bit DAC

USB Media Connection

• USB Connection: USB Extension Cable Included
• Music & Video Playback Compatible
• Music Playback: MP3/WMA/AAC Playback
• Video Playback: DivX Playback
• File/Folder Name Search
• Tag Info Search
• Folder Up/Down
• M.I.X. Random Play
• Repeat

Sound Tuning

• Sound Setting Data Upload to TuneIt Cloud Server (Data Sharing)
• Subwoofer Level Adjustment
• BASS ENGINE SQ: Links 9Band P-EQ,
• Subwoofer Phase Select
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• 9-band Parametric Equalizer
• Digital Time Correction: 6-Channel Digital Time Correction
• Digital Crossover Setting
• Customized Sound Setting by Car Type
• MediaXpander
• Application Volume Level Setting

General

• Power Output: 4 x 50 W High Power Amplifier
• Display: 6.1′′ WVGA High Resolution Display
• White LED Backlighting System
• Control Type: Touch
• Display Colour Setting: 8 Colours (Blue/Light Blue/Turquoise/Green/Red/Amber/Dark Yellow/White) Selectable
• High Grade Audiophile Design
• PreOut: 3 PreOuts (4V, Front/Rear/Subwoofer)
• AUX-Out: 1 Video AUX Output
• AUX-In: 1 A/V AUX Input
• Steering Wheel Remote Control Ready
• OEM Sub-display Ready
• Remote Control Ready
• Camera Connection RCA
• Camera Guide Line Adjustment
• Rearview Camera Display Automatic Boot-up
• Simple Mode & Info Mode Display Selection
• Visual EQ
• Menu Language: 24 Languages (for AV)
• Clock
• Auto Dimmer
• Security Code Anti-theft
• Firmware Updatable
• Detachable DIN Trim Plate
• Power Antenna Lead
• Remote Turn-On

Screen

• Screen Size: 6.1 inch Wide
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Effective Number of Picture Elements: 99.99 %
• Illumination System: White LED Backlighting
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 – 108.0 MHz
• Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 – 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

• Tuning Range: 153 – 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

Disc Player

• Frequency Response: 5 -20k Hz ±1 dB
• Channel Separation (at 1kHz): 85 dB
• Dynamic Range (at 1kHz): 95 dB
• Total Harmonic Distortion (at 1kHz): 0.008%
• Wow & Flutter (%WRMS): B.M.L.
• Signal-to-Noise Ratio: 100 dB
• Horizontal Resolution: 500 lines or greater
• Video Output Level: 1 Vp-p (75 ohms)
• Signal-to-Noise Ratio (Video): DVD: 60 dB

USB

• USB Requirements: USB 1.1/2.0
• Max. Power Consumption: 1,000 mA
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 12/16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ File
• DivX Decoding: ′′.divx′′, ′′.avi′′ File
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.008%
• Dynamic Range (at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

BLUETOOTH®

• BLUETOOTH® Version : Bluetooth V2.1+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• High Pass Filter (Gain): -12 to 0 dB
• Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• Low Pass Filter (Gain): -12 to 0 dB
• Time Correction: 0.0 – 9.9 ms (0.1ms step)
• Parametric Equalizer (Band 1): 20 – 100 Hz
• Parametric Equalizer (Band 2): 63 – 315 Hz
• Parametric Equalizer (Band 3): 125 – 500 Hz
• Parametric Equalizer (Band 4): 250 – 1k Hz
• Parametric Equalizer (Band 5): 500 – 2k Hz
• Parametric Equalizer (Band 6): 1k – 4k Hz
• Parametric Equalizer (Band 7): 2k – 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k – 12k Hz
• Parametric Equalizer (Band 9): 9k – 20k Hz
• Parametric Equalizer (Gain): -7 to +7
• Application Volume Level Setting: -14 to +14

General

• Power Requirement: 14.4 V.DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k Ohms
• Maximum Mounting Angle: 30°
• Weight: 2.25 kg

Dimensions

• Din Size: 2DIN
• Chassis Size (W x H x D) mm: 178 x 100 x 165 mm
• Nose Piece Size (W x H x D) mm: 170 x 96 x 11.5 mm
