AMPLIFICATOR 1 CANAL 1200WX1 4OHM
Descriere

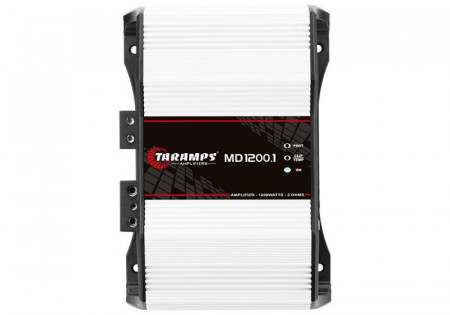

MPLIFICATOR MD 1200.1 4 OHM
Taramps MD 1200.1 în versiunea de 4 ohmi a fost atent proiectat cu cea mai înaltă tehnologie, oferind eficiență și performanță ridicate pentru diverse tipuri de sisteme audio auto. Acest amplificator acopera intreaga gama de frecvente, adica este un modul FULL RANGE. Este clasificat ca mono și are un canal cu o putere maximă de 1200-Watts RMS.
Detalii Tehnice
| Operation class | D |
|---|---|
| Number of Channels | 01 |
| Maximum power | @ 12.6 VDC - 4 OHMS: 1200W RMS @ 12.6 VDC - 8 OHMS: 855W RMS |
| Input Sensitivity | 220mV |
| Signal to Noise Ratio | >88dB |
| Frequency Response | 10Hz ~ 20KHz (-3dB) |
| Crossover high pass (HPF) | 10Hz ~80Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 80Hz ~ Full (-12dB/8ª) Variable |
| bass boost | 0 ~ 10.5dB (50Hz) |
| Thermal Management | Smart Cooler (fan controlled by temperature or audio, with 3 speeds) |
| Efficiency | 82% |
| Input Impedance | 10K Ohms |
| Output Impedance | 4 Ohms |
| protection system | Output short circuit / High or Low supply voltage / Thermal protection |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 1.8A |
| Maximum music consumption | 58A |
| Maximum consumption in sinusoidal signal | 116A |
| Dimensions (WxHxD) | 8.98" x 2.76" x 6.22" (228 x 70 x 158mm) |
| Weight | 3.96lb (1,80kg) |
| EAN | 7898556844819 |
